Uniformity of Illumination with TOFRA 030-457 LED Light Source

Tests were performed on Olympus BX51 microscope with 10X UPlanFL 0.3NA and 20X UPlanFL 0.5NA objectives and Chroma 39002 - AT - EGFP/FITC/Cy2/AlexaFluor 488 filter cube.

Camera - Basler color camera scA 1400-17gc, chip size 1390*1038 pixels, pixel size 6.45 μm * 6.45 μm, in 8-bit mode.  Gain 200.

Intensity profiles were drawn through the center of the frame and averaged over 20 rows (columns).

Specimen: Chroma Green Autofluorescent Plastic Slide.

Field of View

Horizontal Intensity Profile

Vertical Intensity Profile

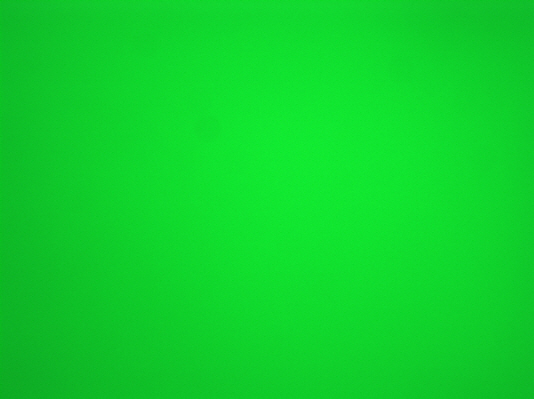

GrPl-LZ1-457-FITC-10X-scA1400-17gc-G200-E700us

10X: Exposure time 700 μsec.

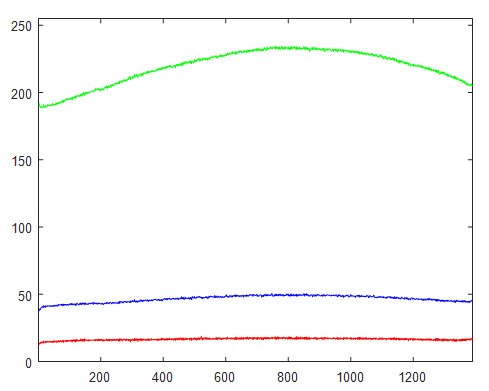

GrPl-LZ1-457-FITC-10X-scA1400-17gc-Profile-H

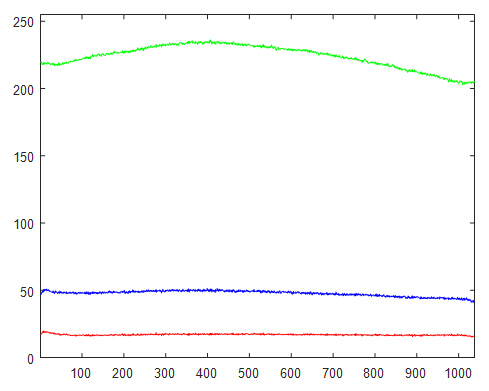

GrPl-LZ1-457-FITC-10X-scA1400-17gc-Profile-V

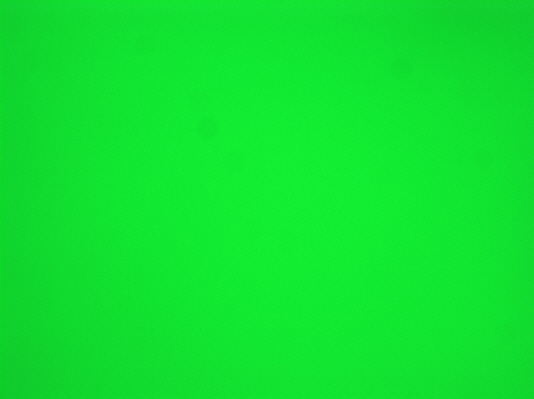

GrPl-LZ1-457-FITC-20X-scA1400-17gc-G200-E400us

20X: Exposure time 400 μsec.

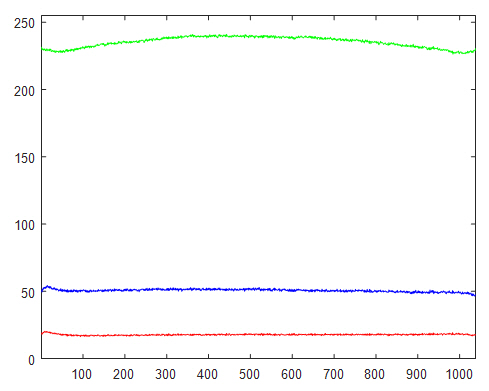

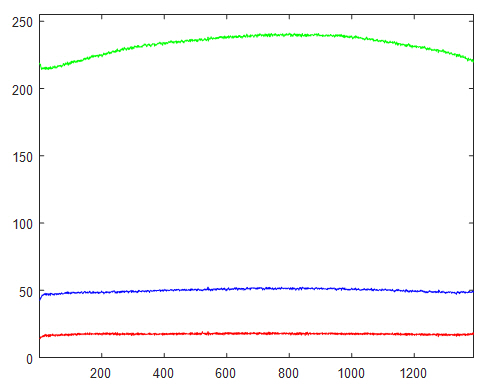

GrPl-LZ1-457-FITC-20X-scA1400-17gc-Profile-H GrPl-LZ1-457-FITC-20X-scA1400-17gc-Profile-V
