Uniformity of Illumination with TOFRA 030-365 LED Light Source

Tests were performed on Olympus BX51 microscope with 10X UPlanFL 0.3NA and 20X UPlanFL 0.5NA objectives and Chroma 39000 - AT - DAPI/Hoechst/AlexaFluor 350 filter cube.

Camera - Basler color camera scA 1400-17gc, chip size 1390*1038 pixels, pixel size 6.45 μm * 6.45 μm, in 8-bit mode.  Gain 600.

Intensity profiles were drawn through the center of the frame and averaged over 20 rows (columns).

Specimen: Chroma Blue Autofluorescent Plastic Slide.

Field of View

Horizontal Intensity Profile

Vertical Intensity Profile

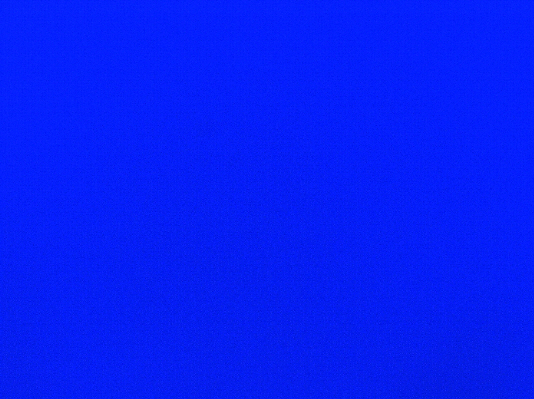

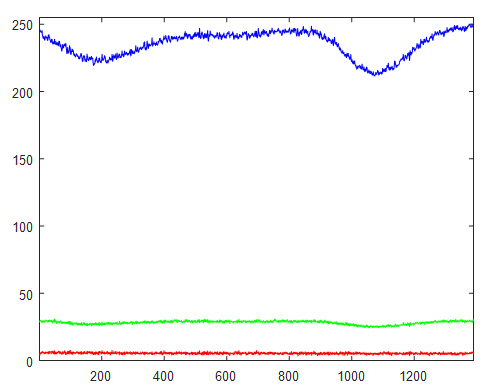

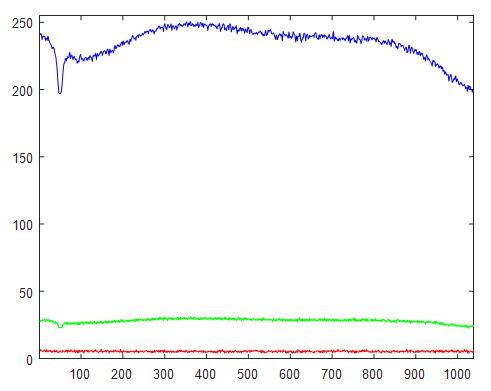

10X: Exposure time 900 μsec.

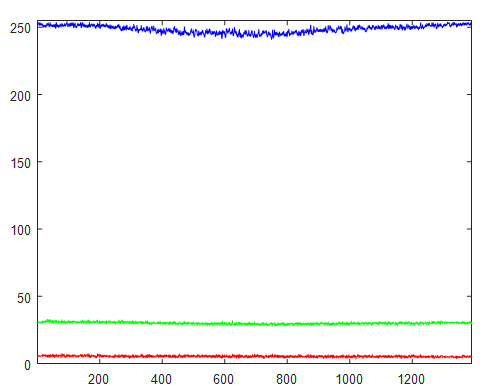

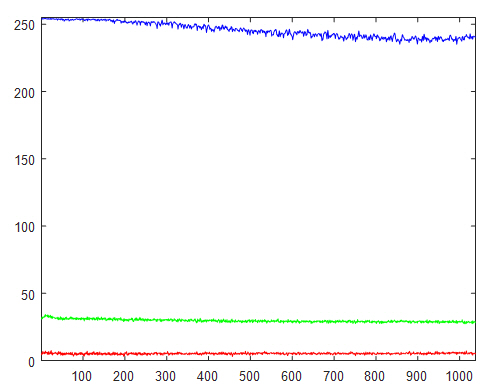

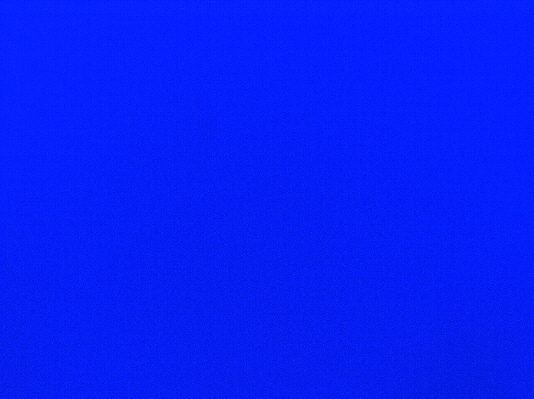

20X: Exposure time 900 μsec.

BluPl-LZ1-365-DAPI-20X-scA1400-17gc-Profile-H BluPl-LZ1-365-DAPI-20X-scA1400-17gc-Profile-V
