Focus Drive with Integrated Controller - Digital Output

fdic with digital output

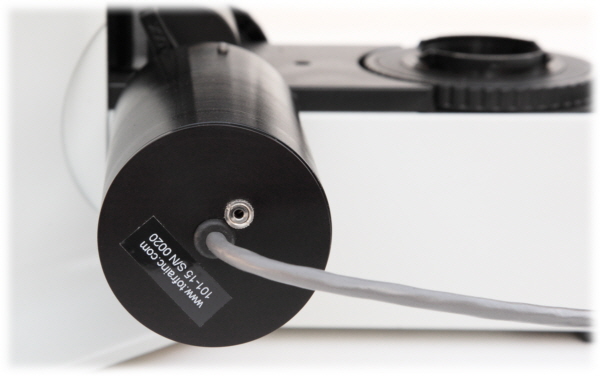

The Focus Drive with Integrated Controller can be ordered with an optional digital output, which is wired for two signals. Each output has the same voltage as the supply voltage to the motor controller and can have up to 1A load. For more details on the output see specification of EZHR17EN controller. To order the output option append "-D" to the part number. Digital output can be used for fast acquisition of Z-stacks by sending a command to the controller that has a loop with move and camera trigger. See, for example, the Execute command for Z-drive here or here.

Ordering Information

Part number

Description

Price (US$)

Add "-D" Digital output option 50.

104-80 Digital output cable 10.

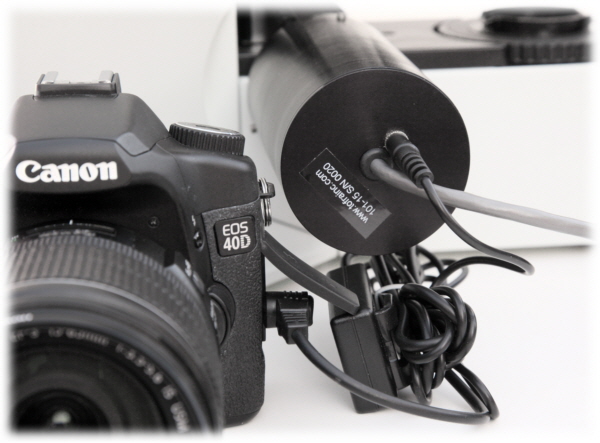

104-81 Digital output cable for Canon EOS cameras with N3 remote shutter release (See here how it is used) 100.

104-82 Dual digital output cable for Canon EOS cameras with N3 remote shutter release for simultaneous use by two controllers, e.g., one stage controller and focus drive controller 150.

Part number	Description	Price (US$)
Add "-D"	Digital output option	50.
104-80	Digital output cable	10.
104-81	Digital output cable for Canon EOS cameras with N3 remote shutter release (See here how it is used)	100.
104-82	Dual digital output cable for Canon EOS cameras with N3 remote shutter release for simultaneous use by two controllers, e.g., one stage controller and focus drive controller	150.
