Multicolor LED Light Sources for Fluorescence Microscopes and Custom Optical Systems

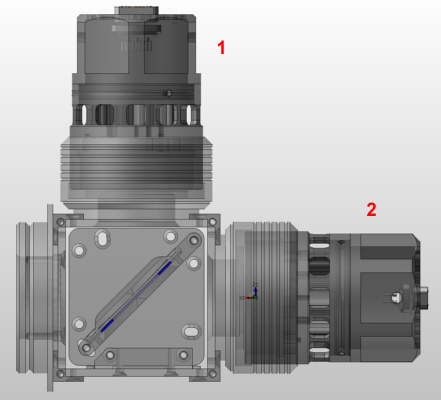

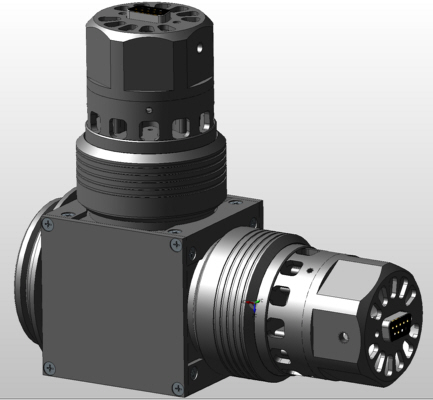

Two Channels

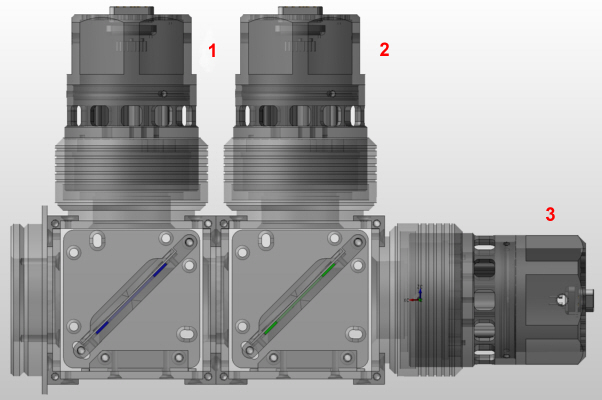

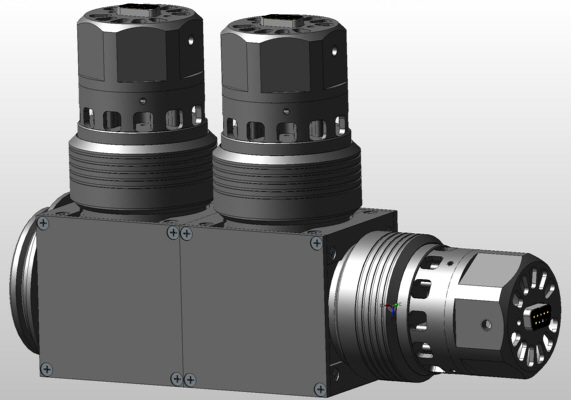

Three Channels
| Multicolor LED Light Sources are intended for epi-illumination (fluorescence, reflection) in upright and inverted microscopes and for custom optical configurations. They can have a white or a single-color chip in each position; a wide selection of colors is available. |
Features and Specifications

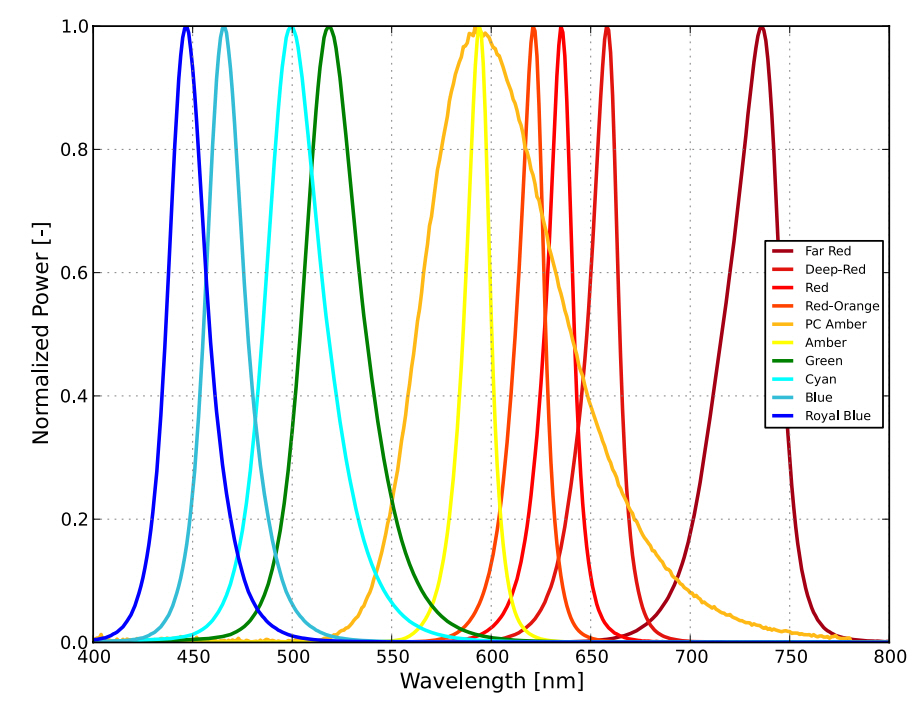

Wavelength options: cool white, neutral white, warm white, single color - 365, 385, 395, 405, 448, 457, 460, 470, 505, 523, 567, 590, 617, 623, 660, 740, 850, 940 nm peak. More wavelengths available upon request.

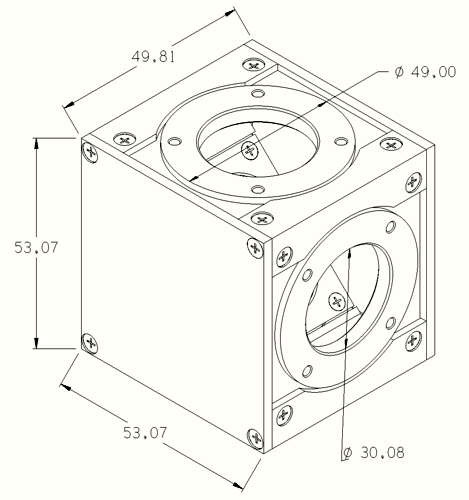

Beam Combiner mounts directly to the microscope port (dimensions and mounting).
LED Heads are compatible with Thorlabs SM2 tube system (2.035"-40 threads) and interchangeable with our integrated LED Light Sources.
Collimated LED output through Ø30mm aperture.
Compatible with beamsplitters from major manufacturers; size from 25.2 x 35.6 x 1 to 26 x 38 x 3 (mm).
Optional excitation filter holders are available.
Aspheric collimating optics provides uniform illumination.
Adjustable focus with focus lock.
Manually variable or computer-controlled intensity from zero to full independently in each channel.
Manual controller has TTL input for instant on-off switching (0V-off, 5V-on, BNC connector).
Extra quiet fan for cooler operation, higher and more stable light output.
Requires 12V or 15V DC power supply with barrel connector 5.5mm/2.1mm, + inside, - outside.
Electrical: 120/240V, 50/60Hz.
Ordering

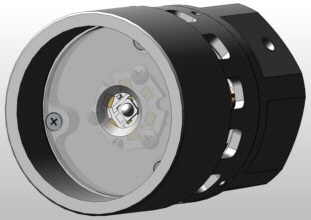

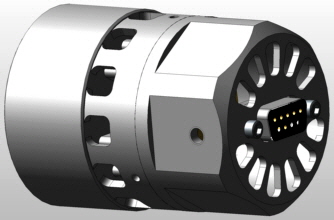

LED Heads
| P/N and Description | Max Current | Max Power | Price USD |

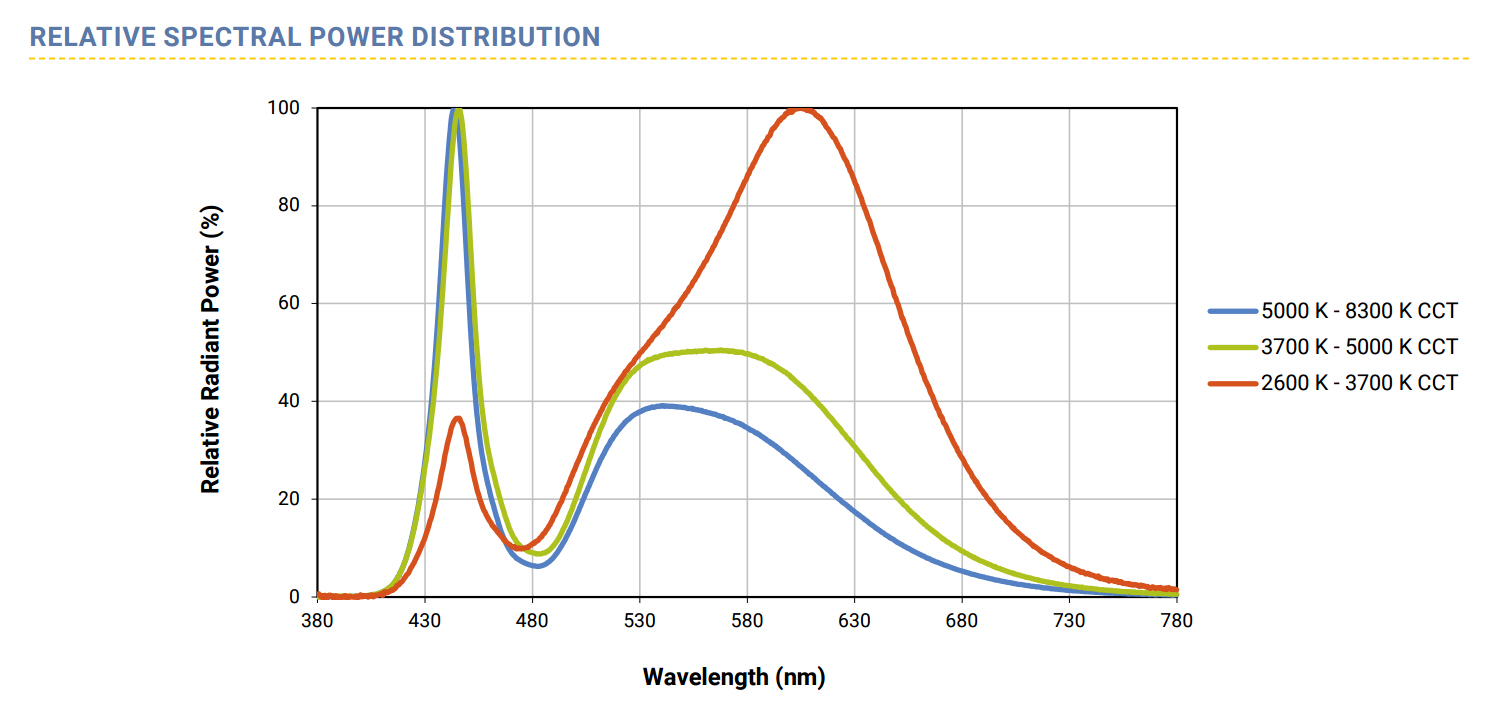

| 050-CW (Cool White) | 1A | 12.3W | 200. |
| 050-NW (Neutral White) | 1A | 12.3W | 200. |
| 050-WW (Warm White) | 1A | 12.3W | 200. |

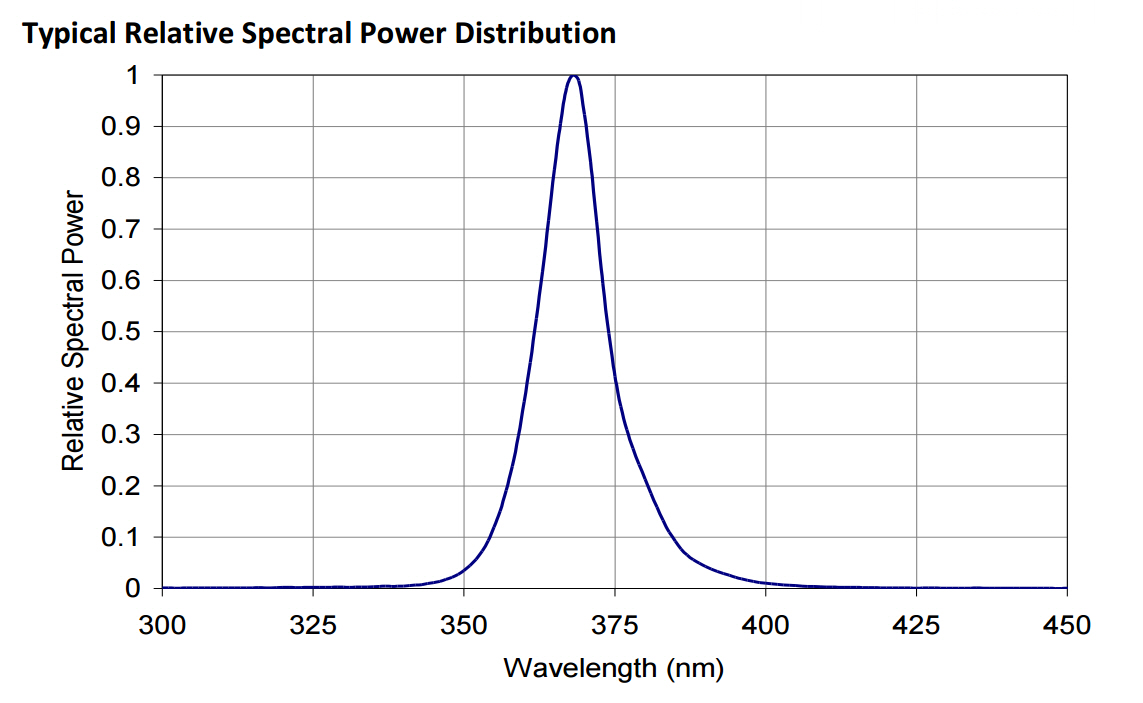

| 050-365 (Ultra Violet) | 1A | 4W | 220. |

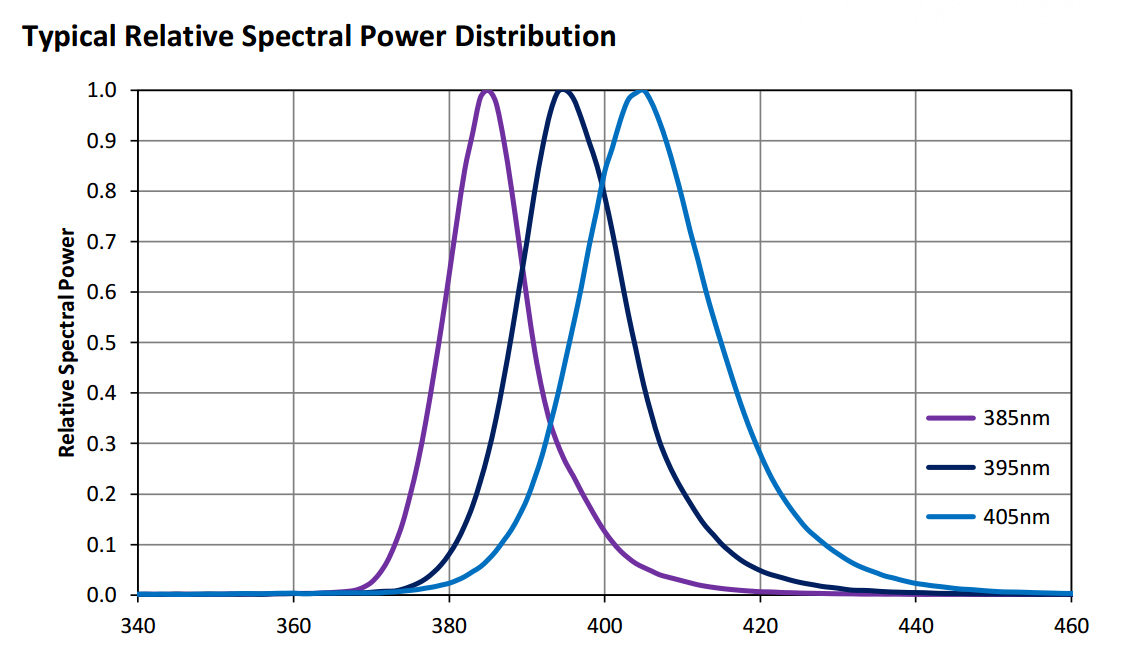

| 050-385 (Violet) | 1A | 3.9W | 200. |
| 050-395 (Violet) | 1A | 3.9W | 200. |
| 050-405 (Violet) | 1A | 3.9W | 200. |
| 050-448 (Royal Blue) | 1A | 3.3W | 200. |

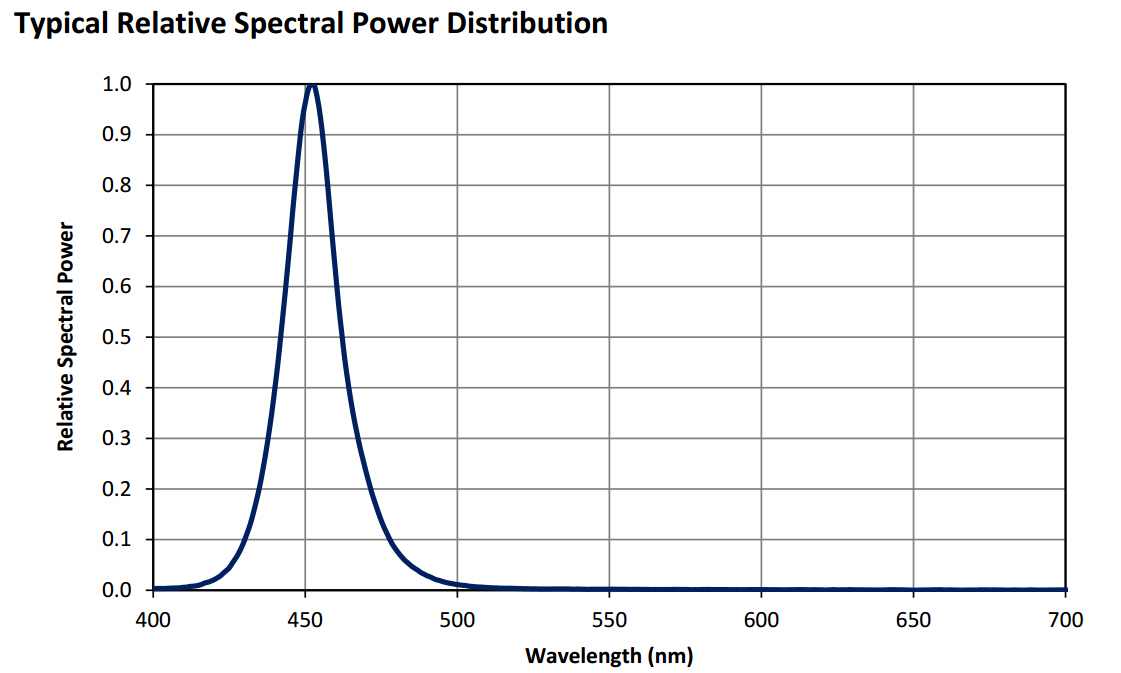

| 050-457 (Blue) | 1.5A | 5.25W | 200. |

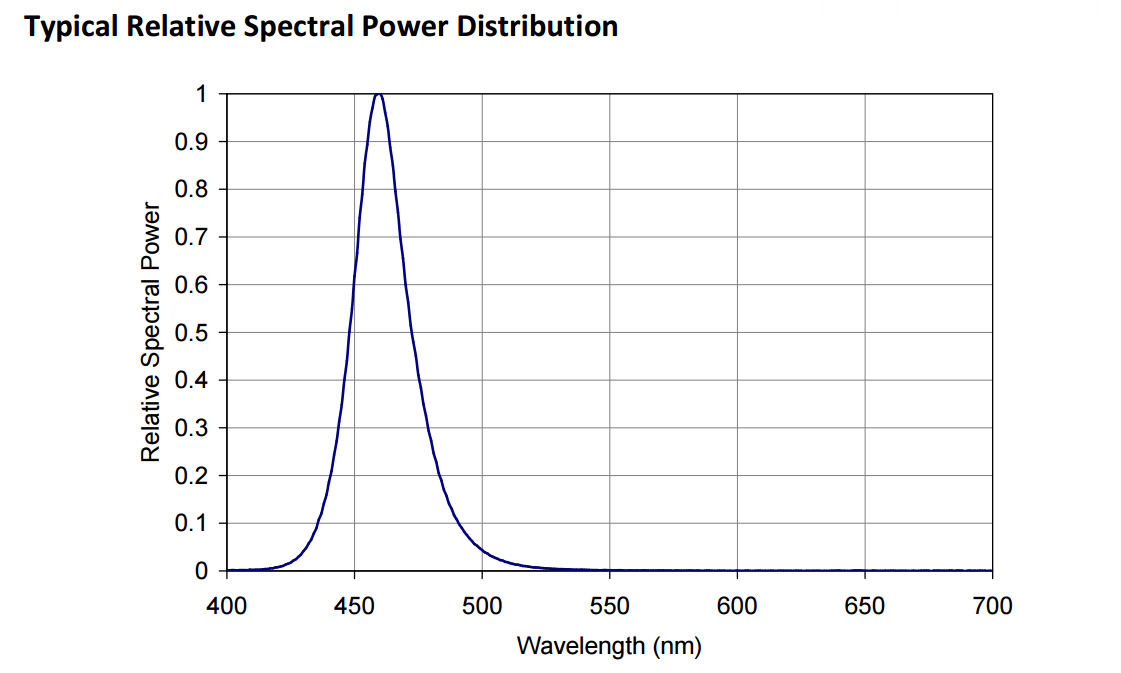

| 050-460 (Dental Blue) | 1.2A | 4.44W | 200. |
| 050-470 (Blue) | 1A | 3.2W | 200. |
| 050-505 (Cyan) | 1A | 3.2W | 200. |

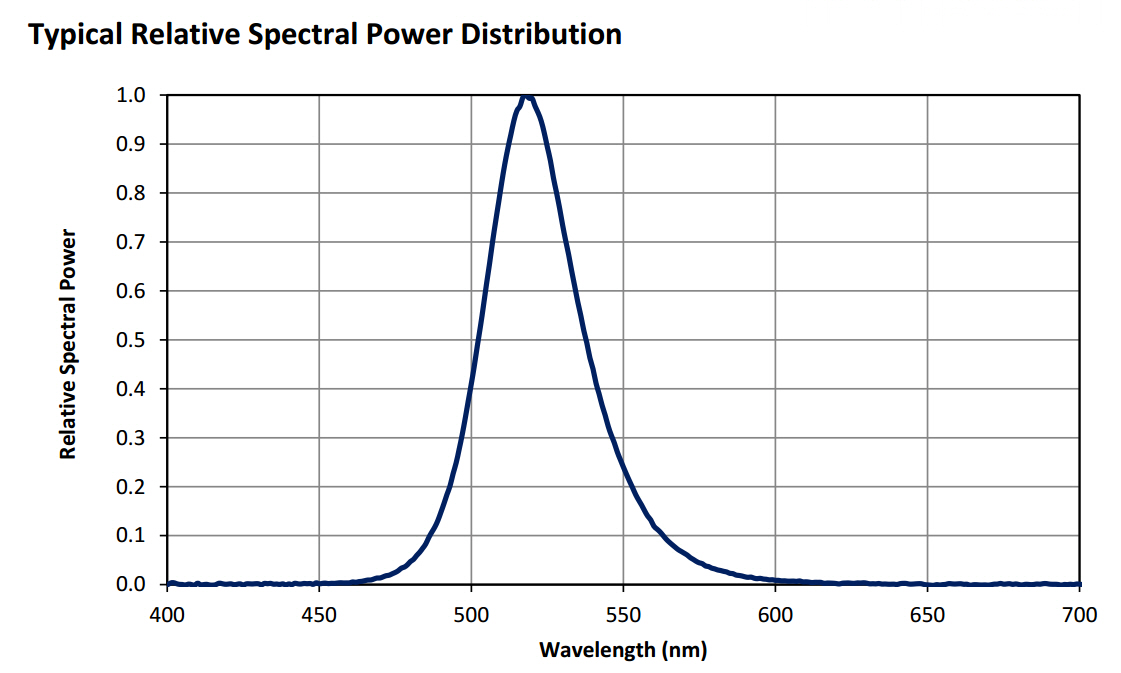

| 050-523 (Green) | 1.5A | 5.92W | 200. |

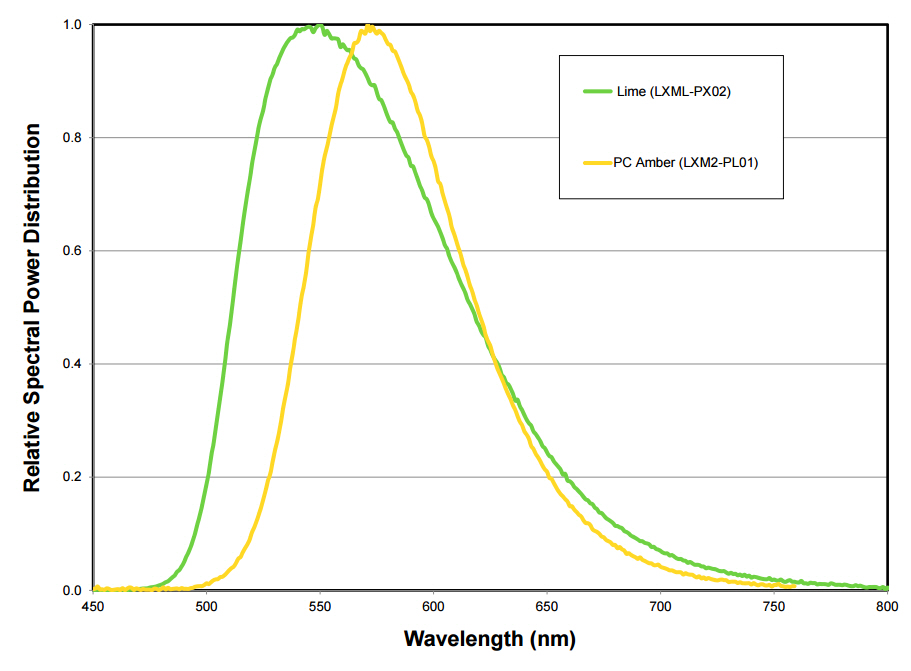

| 050-567 (Lime) | 1A | 2.8W | 200. |

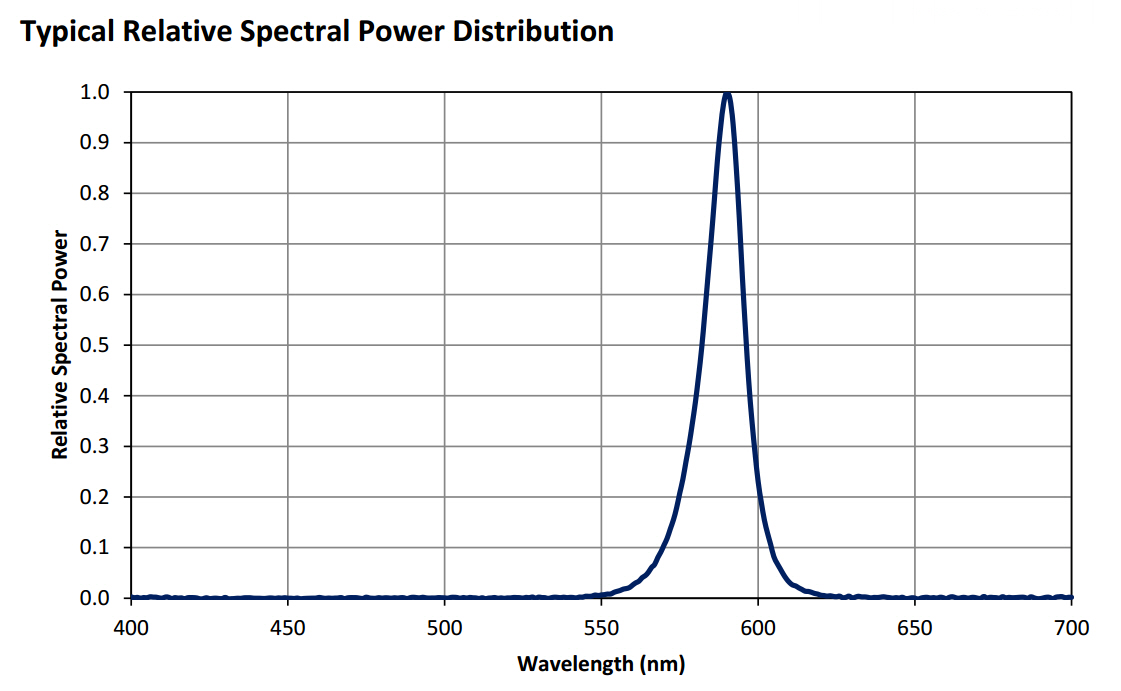

| 050-590 (Amber) | 1.2A | 3.24W | 200. |
| 050-617 (Red-Orange) | 0.7A | 1.95W | 200. |

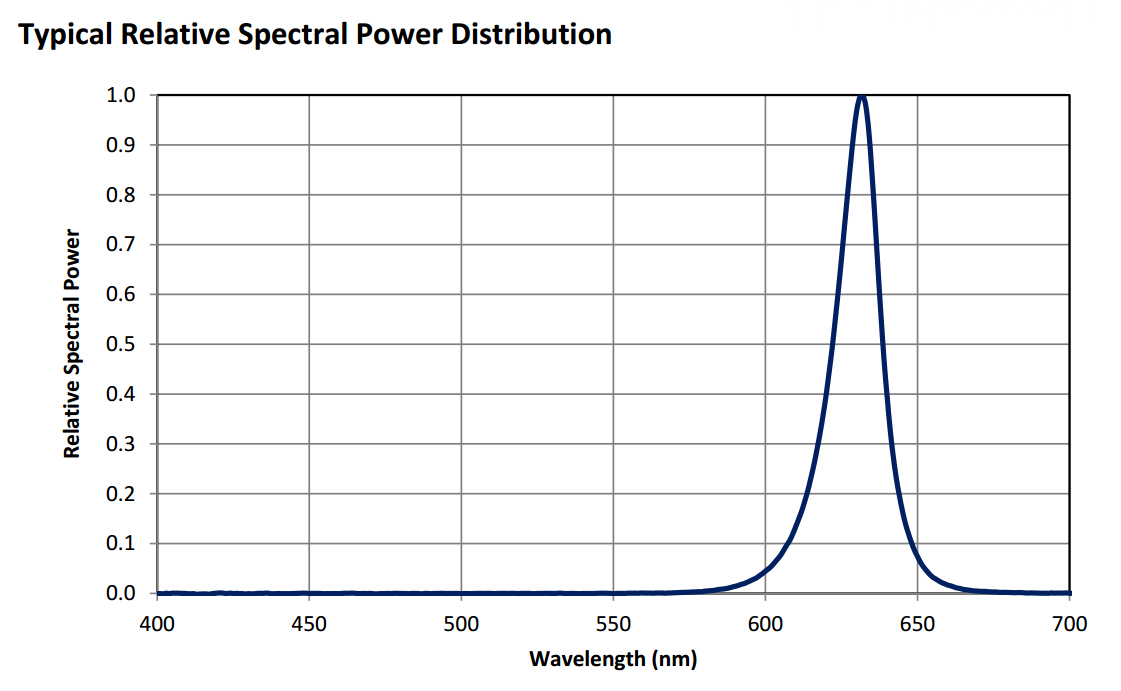

| 050-623 (Red) | 1.5A | 4.5W | 200. |

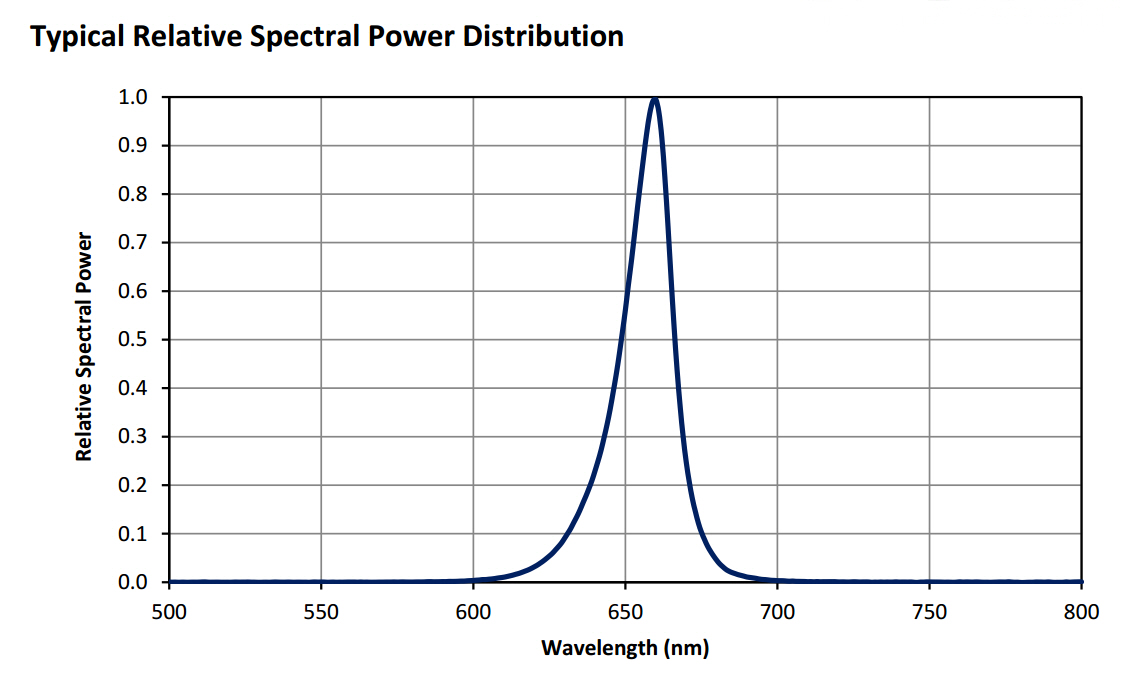

| 050-660 (Deep Red) | 1.2A | 3.12W | 200. |

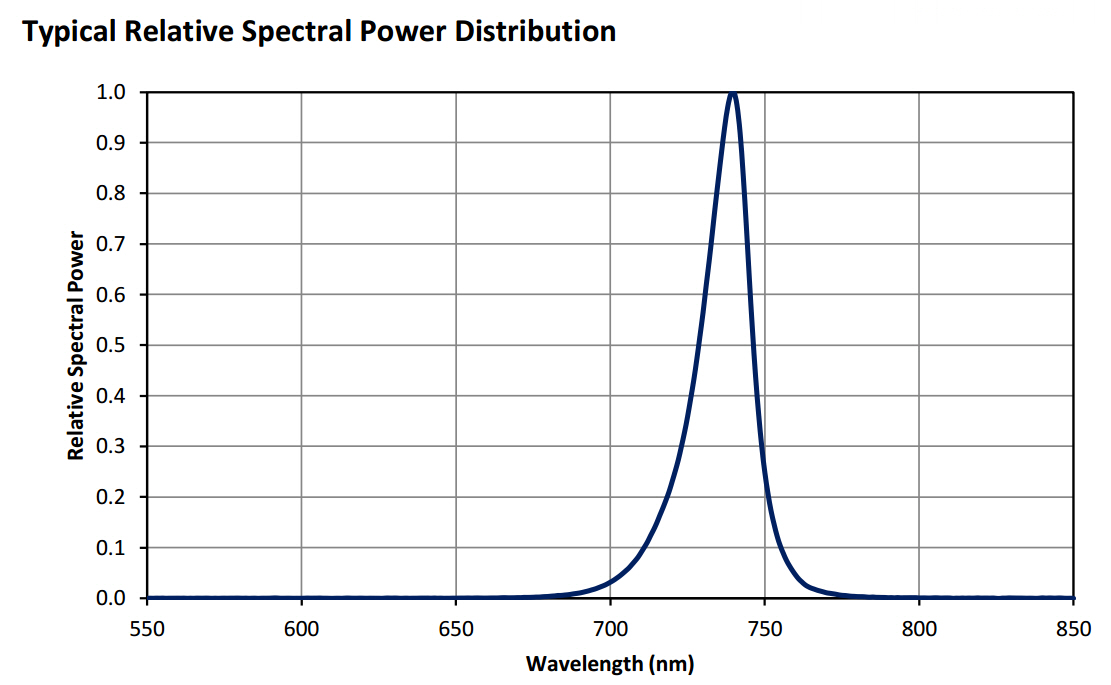

| 050-740 (Far Red) | 1.2A | 2.76W | 200. |

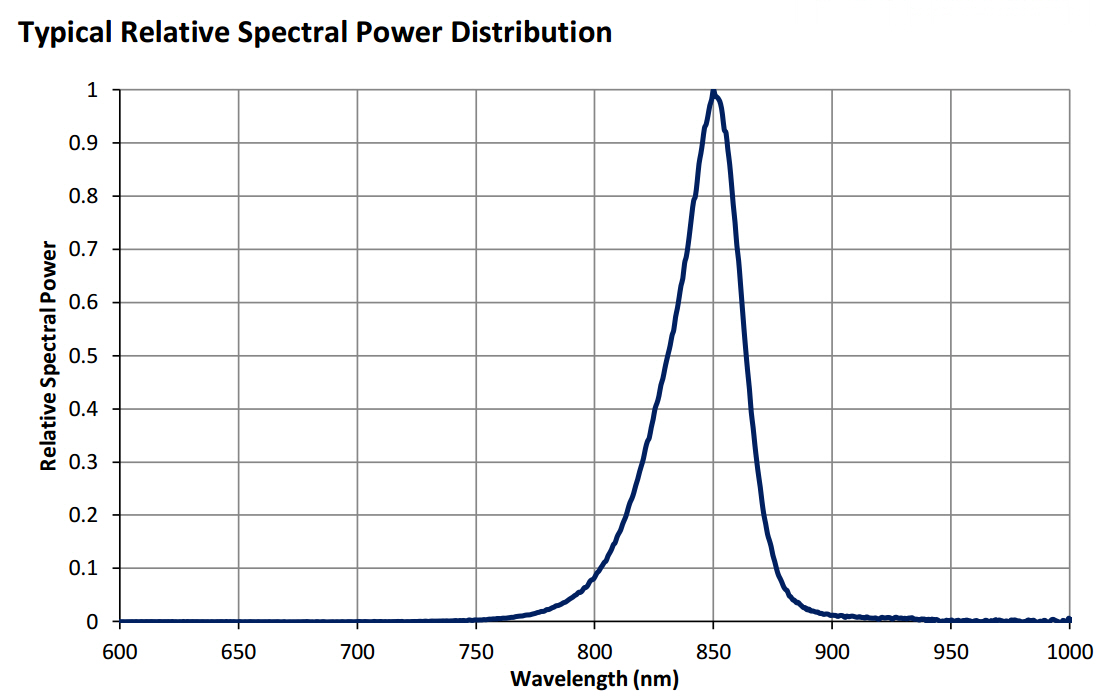

| 050-850 (Infrared) | 1.2A | 3.9W | 200. |

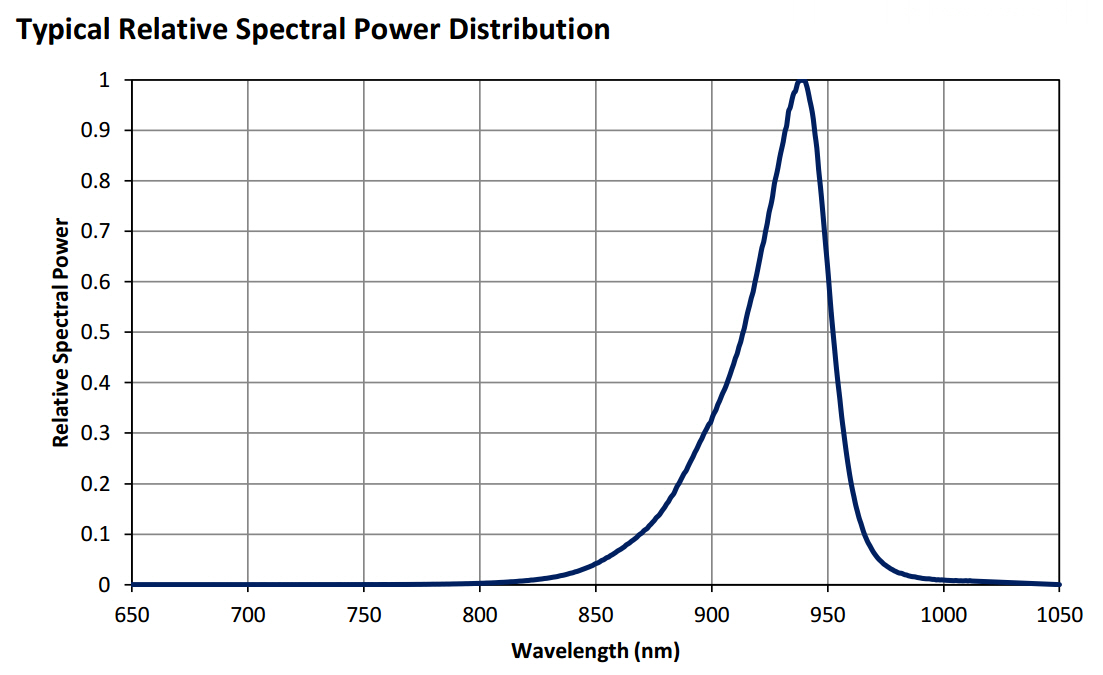

| 050-940 (Infrared) | 1.2A | 3.66W | 200. |
|
For other wavelengths, inquire at
|
|||

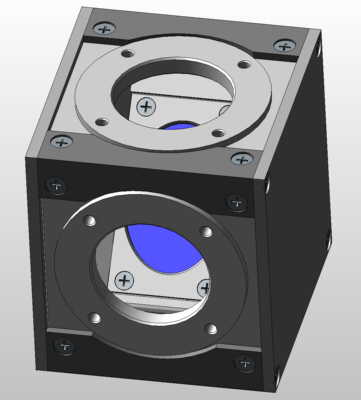

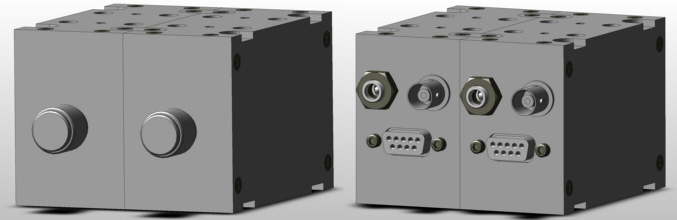

Beam Combiner
| P/N and Description | Image | Price USD |
|
060-00 Beam Combiner |
 |
250. |
|
060-01 Beam Combiner with one excitation filter holder |
 |
275. |
|
060-02 Beam Combiner with two excitation filter holders |
 |
300. |
| Does not include glass elements: beam splitter and excitation filters. | ||
Collimator
| P/N and Description | Image | Price USD |
|
035-00 Collimator for Beam Combiner or Fluorescence Illuminator |
 |
100. |
Controllers with Computer Interface
| P/N | Description | Price USD |
|
055-01 |
1-Channel Controller with Serial Interface | 610. |
|
055-02 |
2-Channel Controller with Serial Interface | 680. |
|
055-03 |

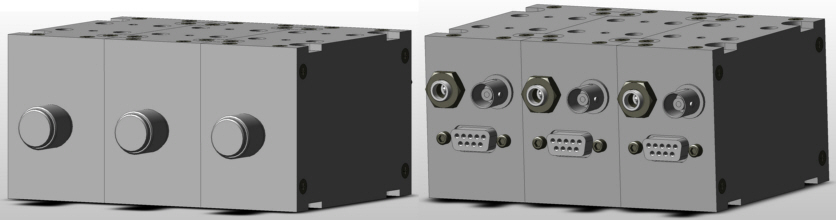

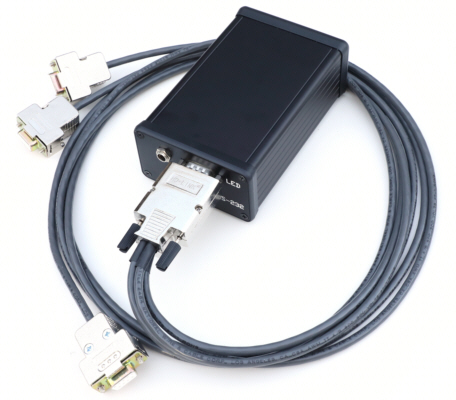

3-Channel Controller with Serial Interface (shown in the photo above) | 750. |
|
055-04 |
4-Channel Controller with Serial Interface | 820. |
|
Specify 0.7A or 1A
constant current driver for
each channel. Includes USB-to-RS232 converter. Includes Controller-to-LED Head(s) splitter cable. Control software LEDToolV can be downloaded here |
||

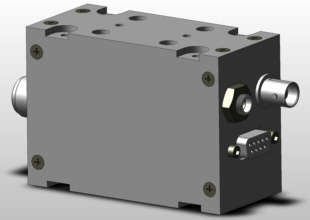

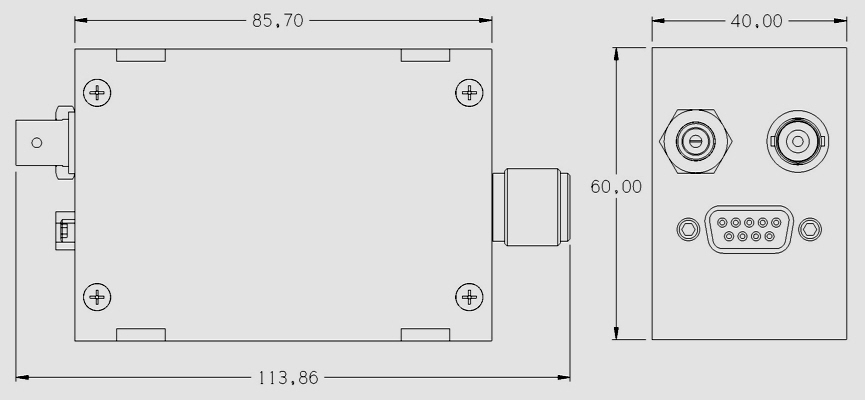

Manual/TTL Controllers
| P/N | Description | Switching Time | Price USD |
|
054-07 |
Controller with 0.7A constant current driver | 25μs | 210. |
|
054-10 |
Controller with 1A constant current driver | 25μs | 210. |
|
054-12 |
Controller with 1.2A constant current driver | 125μs | 210. |
|
054-15 |
Controller with 1.5A constant current driver | 125μs | 210. |
| Includes Controller-to-LED Head cable. | |||
Mounting Adapters
| P/N and Description | Image | Price USD |
|
068-01 Mounting Adapter for Olympus BX (male) |
 |
25. |
|
068-02 Mounting Adapter for Nikon Eclipse (male) |
25. | |
|
068-03 Mounting Adapter for Zeiss Axio (male) |
25. | |
|
068-04 Mounting Adapter for Leica DM (male) |
 |
25. |
|
068-16 Mounting Adapter for ASI C60 ring system (male) |
 |
25. |
| Adapters for Tube and Cage Systems | ||
Power Supplies
| P/N and Description | Image | Price USD |
|

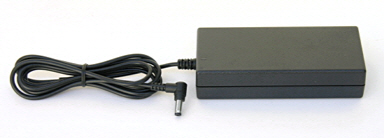

104-81 Power Supply 12V 5.5A |
 |
60. |
|
104-84 Power Supply 15V 2.67A |
|
60. |
|

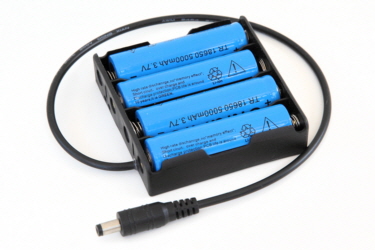

104-85 Battery pack of four 18650 batteries 14.8V (includes charger) |
 |
60. |
Examples:
Two Channels: Broad-band White Light Source with Manual Control (suitable for stains like DAPI, FITC, and TxRed)
| P/N and Description | Quantity | Unit Price | Total Price USD |
|
050-385 (Violet) LED Head |
1 | 200. | 200. |
|
050-CW (Cool White) LED Head |
1 | 200. | 200. |
|
060-00 Beam Combiner |
1 | 250. | 250. |
|
AT415DC Beam Splitter |
1 | 150. | 150. |
|
035-00 Collimator for Beam Combiner |
2 | 100. | 200. |
|
068-01 Mounting Adapter for Olympus BX |
1 | 25. | 25. |
|
054-10 Controller with 1A constant current driver |
2 | 210. | 420. |
|
104-84 Power Supply 15V 2.67A |
1 | 60. | 60. |
|
Total |
1,505. | ||
Three Channels: Three-color Light Source with Manual Control (suitable for stains like DAPI, FITC, and TxRed)
| P/N and Description | Quantity | Unit Price | Total Price USD |
|
050-385 (Violet) LED Head |
1 | 200. | 200. |
|
050-457 (Blue) LED Head |
1 | 200. | 200. |
|
050-567 (Lime) LED Head |
1 | 200. | 200. |
|
060-00 Beam Combiner |
2 | 250. | 500. |
|
AT415DC Beam Splitter |
1 | 150. | 150. |
|
AT485DC Beam Splitter |
1 | 150. | 150. |
|
035-00 Collimator for Beam Combiner |
3 | 100. | 300. |
|
068-01 Mounting Adapter for Olympus BX |
1 | 25. | 25. |
|
054-10 Controller with 1A constant current driver |
2 | 210. | 420. |
|
054-15 Controller with 1.5A constant current driver |
1 | 210. | 210. |
|
104-81 Power Supply 12V 5.5A |
1 | 60. | 60. |
|
Total |
2,415. | ||
