Filter Wheel with Integrated Controller without Mounting Adapters

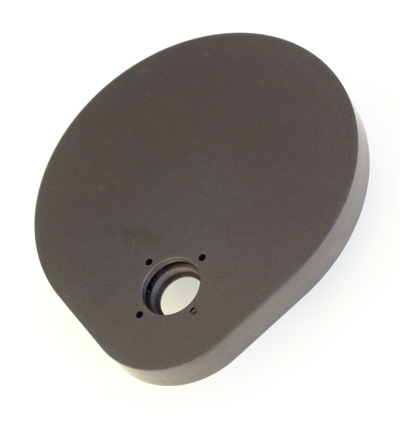

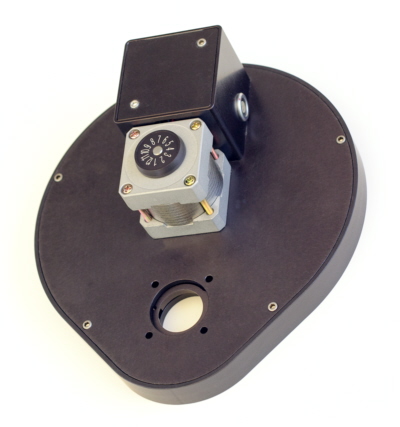

    View from outside (front, back)

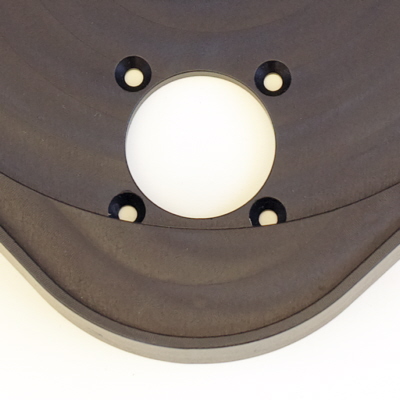

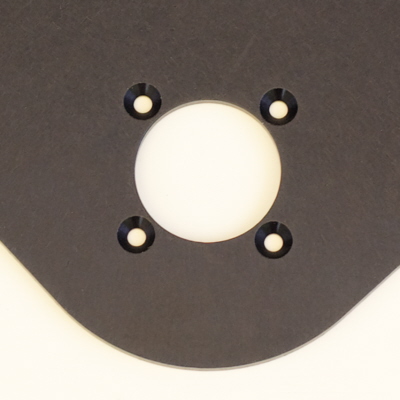

    View from inside (front, back)

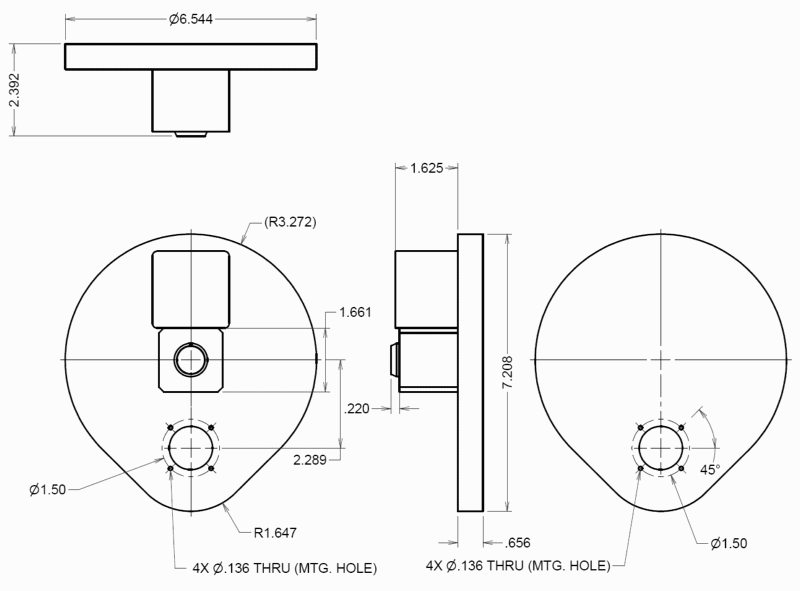

    Overall Dimensions and Mounting Holes

Large Capacity Filter Wheel Dimensions

Mounting holes have countersinks for use with 6-32 flat head screws facing from inside the case outward.
