Filter Cube Slider with Integrated Controller

Filter Cube Slider with Integrated Controller

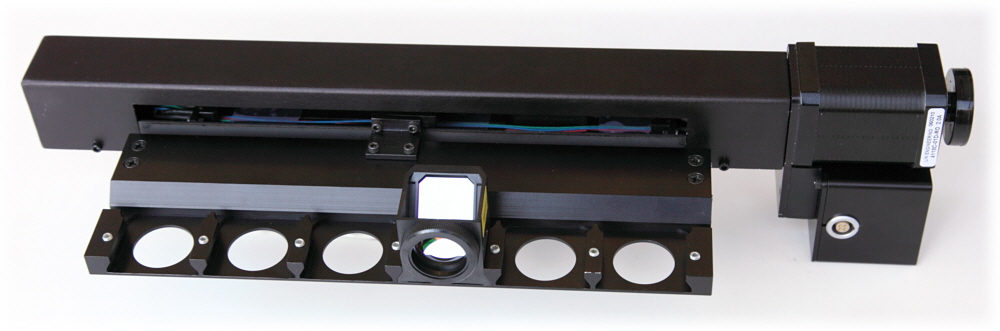

Filter Cube Slider with Integrated Controller provides fast switching of filter cubes used in fluorescent microscopes. Time between adjacent positions is 200 ms. The slider uses standard filter cubes and has 6 cube positions. Cubes can be inserted and removed by hand. The slider mounts in the existing mounting holes in the microscope body, no modifications are needed. The slider does not interfere with other standard microscope parts, e.g. objective turret. The use of individual filter cubes is more light-efficient compared to the use of multibandpass beam splitter and individual excitation filters. The operation of the filter cube slider does not introduce any more pixel shift than is inherent in the optics of the cubes.

Specifications

Number of cubes 6
Switch time between adjacent positions 190 ms with 12V power supply, 160 ms with 24V power supply, 130 ms with 36V power supply
Mounting No modification of the microscope is required
Motor 2 phase, 1.8 degrees per step, 2.0A/phase
Controller Microstepping motion controller and driver EZHR17EN from AllMotion (12-40V)
Computer Interface Serial RS232 or USB with USB-to-serial converter
Control Software Micro-Manager Device Adapter

Ordering information for filter cube sliders

Part number

Description

Price (US$)

108-01 Filter Cube Slider with Integrated Controller for Nikon TE2000 1900.
107-99 Cable for Devices with Integrated Controller 100.
104-94 Converter (RS232-RS485) Box with USB Converter and Cable (order one of: 104-94, 104-95, 104-96, or 104-97) 200.
104-95 Converter (RS232-RS485) Bracket with USB Converter and Cable 200.
104-96 Converter (RS232-RS485) Box with Serial Cable 150.
104-97 Converter (RS232-RS485) Bracket with Serial Cable 150.
104-98 Power Supply 60.

Specifications are subject to change without notice. Delivery 6 weeks ARO.
